术中吲哚菁绿 (ICG) 和术前 3 维 (3D) 重建在腹腔镜肾上腺切除术中的作用：倾向评...

腹腔镜肾上腺切除术 (LA) 被认为是治疗肾上腺病变的“金标准”，肾上腺病变通常在其他疾病的放射检查过程中被偶然诊断出来。 本研究旨在评估吲哚菁绿 (ICG) 荧光与术前三维重建 (3DR) 在腹腔镜肾上腺切除术围手术期结果方面的术中作用。 据所知，这是第一份比较这些技术的前瞻性病例对照报告。

从 2019 年 1 月 1 日至 2022 年 1 月 31 日，所有年龄≥18 岁并接受腹腔镜经腹膜肾上腺切除术治疗所有肾上腺肿块的连续患者均被前瞻性纳入。 接受标准 LA 的患者和接受术前 3D 重建和术中 ICG 荧光的患者通过年龄、性别、BMI、CCI 评分、ASA 评分、病变组织学、肿瘤侧和 病变直径。 分析了手术时间、失血量、术中和术后并发症、转化率和住院时间的差异。

经过倾向评分匹配分析，获得了一个队列，其中 36 名患者被分为 2 组，每组 18 名患者。 3DR 组患者的手术时间和术中失血量更短（分别为 P=0,004 和 P=0,004）。 两组在住院时间、中转率、术中术后并发症等方面无差异。

在 LA 中使用术中 ICG 和使用 3DR 图像进行术前计划是对手术的一种安全且有用的补充。 此外，观察到手术时间和术中失血量减少。

术中吲哚菁绿 (ICG) 和术前 3 维 (3D) 重建在腹腔镜肾上腺切除术中的作用：倾向评...

图 1

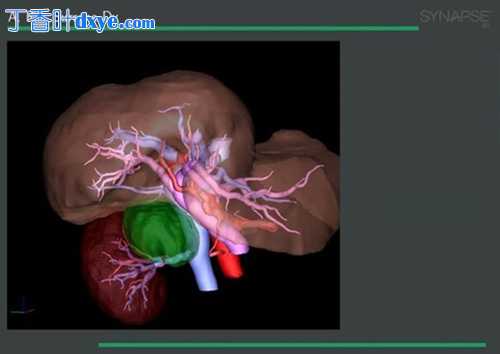

右侧肾上腺嗜铬细胞瘤的 3D 重建，如手术过程中使用的导出 PDF 文件所示。 每个结构都以不同的颜色显示，并且可以根据需要显示、透视或隐藏。 整个重建可以放大并在各个方向旋转。

术中吲哚菁绿 (ICG) 和术前 3 维 (3D) 重建在腹腔镜肾上腺切除术中的作用：倾向评...

图 2

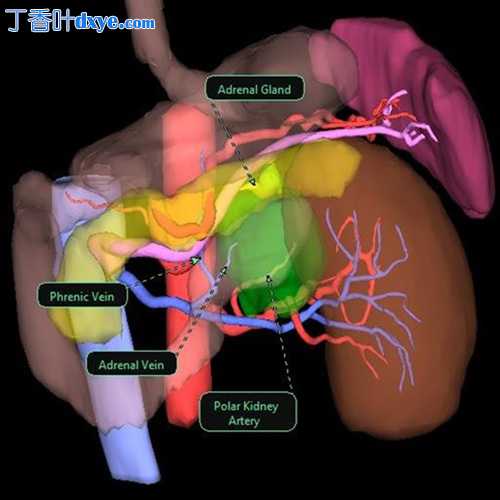

左肾上腺嗜铬细胞瘤的 3D 重建，如 PDF 导出前在软件中可视化。 每个识别的结构都可以用标签指出。

术中吲哚菁绿 (ICG) 和术前 3 维 (3D) 重建在腹腔镜肾上腺切除术中的作用：倾向评...

图 3
右侧嗜铬细胞瘤肾上腺切除术期间 ICG 给药时间为零时的采集 (A)。 染料在 30 英寸 (B) 和 60 英寸 (C) 处的进展，可以看到肾上腺静脉、腔静脉（白色星号）、肾静脉和低荧光病变。

术中吲哚菁绿 (ICG) 和术前 3 维 (3D) 重建在腹腔镜肾上腺切除术中的作用：倾向评...

图 4
在 60 英寸处采集库欣损伤：肾上腺静脉清晰可见（白色箭头）。 由于 ICG 的新陈代谢，肝脏（白色星号）发出强荧光。

参考资料：
1. Yilmaz N, Avsar E, Tazegul G, et al.. Clinical characteristics and follow-up results of adrenal incidentaloma. Exp Clin Endocrinol Diabetes. 2021;129:349–356.
2. Barzon L, Sonino N, Fallo F, et al.. Prevalence and natural history of adrenal incidentalomas. Eur J Endocrinol. 2003;149:273–285.
3. Fassnacht M, Arlt W, Bancos I, et al.. Management of adrenal incidentalomas: European Society of Endocrinology Clinical Practice Guideline in collaboration with the European Network for the Study of Adrenal Tumors. Eur J Endocrinol. 2016;175:G1–G34.
4. Cambos S, Tabarin A. Management of adrenal incidentalomas: Working through uncertainty. Best Pract Res Clin Endocrinol Metab. 2020;34101427. Epub 2020 May 15. PMID: 32448594.
5. Lee JM, Kim MK, Ko SH, et al.. Korean endocrine society, committee for clinical practice guidelines. clinical guidelines for the management of adrenal incidentaloma. Endocrinol Metab (Seoul). 2017;32:200–218.
6. Elhassan YS, Alahdab F, Prete A, et al.. Natural history of adrenal incidentalomas with and without mild autonomous cortisol excess: a systematic review and meta-analysis. Ann Intern Med. 2019;171:107–116.
7. Yener S, Ertilav S, Secil M, et al.. Prospective evaluation of tumor size and hormonal status in adrenal incidentalomas. J Endocrinol Invest. 2010;33:32–36.
8. Raverot G, Burman P, McCormack A, et al.. European Society of Endocrinology Clinical Practice Guidelines for the management of aggressive pituitary tumours and carcinomas. Eur J Endocrinol. 2018;178:G1–G24.
9. Dworak J, Wysocki M, Rzepa A, et al.. Laparoscopic adrenalectomy - Is it safe in hands of residents in training? BMC Urol. 2019;19:102.
10. Moore EC, Berber E. Fluorescence techniques in adrenal surgery. Gland Surg. 2019;8(suppl 1):S22–S27.
11. Tuncel A, Balci M, Aykanat C, et al.. Laparoscopic partial adrenalectomy using near-infrared imaging: the initial experience. Minim Invasive Ther Allied Technol. 2021;30:94–100;.
12. Cacciamani GE, Shakir A, Tafuri A, et al.. Best practices in near-infrared fluorescence imaging with indocyanine green (NIRF/ICG)-guided robotic urologic surgery: a systematic review-based expert consensus. World J Urol. 2020;38:883–896.
13. DeLong JC, Chakedis JM, Hosseeini A, et al.. Indocyanine Green (ICG) fluorescence guided laparoscopic adrenalectomy. J Surg Oncol. 2015;112:650–653.
14. Colvin J, Zaidi N, Berber E. The utility of indocyanine green fluorescence imaging during robotic adrenalectomy. J Surg Oncol. 2016;114:153–156.
15. Arora E, Bhandarwar A, Wagh A. Role of indo-cyanine green (ICG) fluorescence in laparoscopic adrenalectomy: a retrospective review of 55 Cases. Surg Endosc. 2018;32:4649–4657.
16. Soler L, Nicolau S, Pessaux P, et al.. Real-time 3D image reconstruction guidance in liver resection surgery. Hepatobiliary Surg Nutr. 2014;3:73–81.
17. Catapano G, Sgulò F, Laleva L, et al.. Multimodal use of indocyanine green endoscopy in neurosurgery: a single-center experience and review of the literature. Neurosurg Rev. 2018;41:985–998.
18. Chakedis J, Shirley LA, Terando AM, et al.. Identification of the thoracic duct using indocyanine green during cervical lymphadenectomy. Ann Surg Oncol. 2018;25:3711–3717.
19. Baiocchi GL, Guercioni G, Vettoretto N, et al.. ICG fluorescence imaging in colorectal surgery: a snapshot from the ICRAL study group. BMC Surg. 2021;21:190.
20. Lafreniere AS, Shine JJ, Nicholas CR, et al.. The use of indocyanine green and near-infrared fluorescence imaging to assist sentinel lymph node biopsy in cutaneous melanoma: A systematic review. Eur J Surg Oncol. 2021;47:935–941.
21. Meira J, Marques ML, Falcão-Reis F, et al.. Immediate reactions to fluorescein and indocyanine green in retinal angiography: Review of literature and proposal for patient’s evaluation. Clin Ophthalmol. 2020;14:171–178.
22. Chen L, Zeng X, Li S, et al.. Evaluation of a large adrenal carcinoma with 3D reconstruction of computed tomography images: A case report and literature review. J Xray Sci Technol. 2016;24:665–671.
23. Inoue A, Ohnishi T, Kohno S, et al.. Usefulness of an image fusion model using three-dimensional CT and MRI with indocyanine Green Fluorescence Endoscopy as a multimodal assistant system in endoscopic transsphenoidal surgery. Int J Endocrinol. 2015;2015:694273.
24. Zheng J, Xie W, Huang Y, et al.. The technique of 3D reconstruction combining with biochemistry to build an equivalent formula of indocyanine green (ICG) clearance test to assess the liver reserve function. BMC Surg. 2020;20:694283; Published 2020 Nov 12.
25. Pegoraro F, Montalti R, Rompianesi G, et al.. Laparoscopic ICG-guided RALPPS procedure for HCC on cirrhosis with 3D reconstruction implementation: a case report. Hepatoma Res. 2021;7:24.
26. Dindo D, Demartines N, Clavien PA. Classification of surgical complications: a new proposal with evaluation in a cohort of 6336 patients and results of a survey. Ann Surg. 2004;240:205–213.
27. Paganini AM, Balla A, Guerrieri M, et al.. Laparoscopic transperitoneal anterior adrenalectomy in pheochromocytoma: experience in 62 patients. Surg Endosc. 2014;28:2683–2689.
28. Lezoche E, Guerrieri M, Paganini AM, et al.. Laparoscopic adrenalectomy by anterior transperitoneal approach. Results of 108 operations in unselected cases. Surg Endosc. 2000;14:920–925.
29. Lezoche E, Guerrieri M, Feliciotti F, et al.. Anterior, lateral, and posterior retroperitoneal approaches in endoscopic adrenalectomy. Surg Endosc. 2002;16:96–99.
30. Murphy MM, Witkowski ER, Ng SC, et al.. Trends in adrenalectomy: A recent national review. Surg Endosc. 2010;24:2518–2526.
31. Gagner M, Lacroix A, Boltè E. Laparoscopic adrenalectomy in Cushing’s syndrome and pheochromocytoma. N Engl J Med. 1992;327:1033.
32. Smith CD, Weber CJ, Amerson JR. Laparoscopic adrenalectomy: new gold standard. World J Surg. 1999;23:389–396.
33. Maas M, Nassiri N, Bhanvadia S, et al.. Discrepancies in the recommended management of adrenal incidentalomas by various guidelines. J Urol. 2021;205:52–59.
34. Mitterberger M, Pinggera GM, Peschel R, et al.. The use of three-dimensional computed tomography for assessing patients before laparoscopicadrenal-sparing surgery. BJU Int. 2006;98:1068–1073.
35. Rieder JM, Nisbet AA, Wuerstle MC, et al.. Differences in left and right laparoscopic adrenalectomy. JSLS. 2010;14:369–373; PMID: 21333190; PMCID: PMC3041033.
36. Cianci P, Fersini A, Tartaglia N, et al.. Are there differences between the right and left laparoscopic adrenalectomy? Our experience. Ann Ital Chir. 2016;87:242–246; PMID: 2734519.
37. Brunt LM. SAGES Guidelines for minimally invasive treatment of adrenal pathology. Surg Endosc. 2013;27:3957–3959.
38. de Fourmestraux A, Salomon L, Abbou CC, et al.. Ten year experience of retroperitoneal laparoscopic resection for pheochromocytomas: A dual‐centre study of 72 cases. World J Urol. 2015;33:1103–1107.
39. Bailer R, Martin RCG, 2nd. The effectiveness of using 3D reconstruction software for surgery to augment surgical education. Am J Surg. 2019;218:1016–1021.
40. Pisarska M, Pędziwiatr M, Budzyński A. Perioperative hemodynamic instability in patients undergoing laparoscopic adrenalectomy for pheochromocytoma. Gland Surg. 2016;5:506–511.
41. Sound S, Okoh AK, Bucak E, et al.. Intraoperative tumor localization and tissue distinction during robotic adrenalectomy using indocyanine green fluorescence imaging: a feasibility study. Surg Endosc. 2016;30:657–662.
42. Dinuzzi VP, Palomba G, De Palma GD, et al.. The use of preoperative three-dimensional reconstruction and intraoperative indocyanine green in laparoscopic adrenalectomy. Int J Surg. 2020;81:80–81.
43. Kraft JC, Ho RJY. Interactions of indocyanine green and lipid in enhancing near-infrared fluorescence properties: the basis for near-infrared imaging in vivo. Biochemistry. 2014;53:1275–1283.
44. Dip FD, Ashbun D, Rosales-Velderrain A, et al.. Cost analysis and effectiveness comparing the routine use of Intraoperative fluorescence cholangiography for open and laparoscopic surgery. Surg Endos. 2014;28:1076–1082.
45. Manny TB, Pompeo AS, Hemal AK. Robotic partial adrenalectomy using indocyanine green dye with near-infrared imaging: the initial clinical experience. Urology. 2013;82:738–742.
46. Lerchenberger M, Gündogar U, Al Arabi N, et al.. Indocyanine green fluorescence imaging during partial adrenalectomy. Surg Endosc. 2020;34:2050–2055.
47. Kahramangil B, Berber E. The use of near infra-red fluorescence imaging in endocrine surgical procedures. J Surg Oncol. 2017;115:848–855.
48. Srougi V, Rocha BA, Tanno FY, et al.. The use of three-dimensional printers for partial adrenalectomy: estimating the resection limits. Urology. 2016;90:217–221.
49. Palomba G, Dinuzzi VP, De Palma GD, et al.. Management strategies and role of telemedicine in a surgery unit during COVID-19 outbreak. Int J Surg. 2020;79:189–190.
50. Benya R, Quintana J, Brundage B. Adverse reactions to indocyanine green: a case report and a review of the literature. Cathet Cardiovasc Diagn. 1989;17:231–233.
