鼻窦癌皮瓣或移植物重建手术的跨学科挑战和目标

在鼻窦癌手术中，一个根本的挑战是了解重建后的术后影像学变化。 对术后影像学的误解可能导致肿瘤复发的误诊。 由于放疗计划是基于影像学，因此在解释术后影像学以正确定义存在皮瓣的情况下放疗肿瘤体积方面存在许多知识空白需要填补。 另一方面，放疗可能导致组织纤维化或萎缩，与单纯手术相比，放疗后重建区域的解剖结构和功能结果可能会发生变化。 这篇叙述性综述阐述了使用皮瓣或移植物进行鼻窦重建手术的跨学科目标和挑战。 在强度调制放射治疗和质子治疗有可能进一步降低发病率的时候，它与放射科医生和放射肿瘤学家特别相关。

鼻窦癌皮瓣或移植物重建手术的跨学科挑战和目标

肠型腺癌经鼻内窥镜去骨瓣切除术后的阔筋膜 (FaLa) 硬膜成形术。 (A) 肿瘤切除后手术视野的内窥镜视图：左右眼眶壁（分别为 RO 和 LO）、蝶窦 (SphS) 和额叶（星号）暴露； 虚线表示硬脑膜切除的范围。 (B) 第一层阔筋膜放置在硬膜内以获得水密闭合。

鼻窦癌皮瓣或移植物重建手术的跨学科挑战和目标

在 T2 加权 MRI 序列上用阔筋膜和腹部脂肪移植物 (B) 对肠型腺癌进行颅底重建的术前 (A) 和术后早期（术后第 5 天）。

鼻窦癌皮瓣或移植物重建手术的跨学科挑战和目标

对比增强 T1 加权 MRI 序列上的鼻中隔皮瓣 (A) 和左侧颞顶筋膜浅筋膜皮瓣 (B) 的术后情况。 注意对比增强后皮瓣的高信号（白色箭头）。

鼻窦癌皮瓣或移植物重建手术的跨学科挑战和目标

复发性鼻咽癌左侧内窥镜鼻咽切除术后，用浅表颞顶筋膜瓣 (sTPFF) 覆盖鼻咽外侧壁。 (A) sTPFF 以颞浅动脉为蒂； 它通过颞/颞下窝隧道（箭头）转移到鼻腔中。 (B) 2 个月后的术后内窥镜视图：皮瓣（虚线）已通过左上颌窦 (PWMS) 后壁的开口引入并覆盖鼻咽侧壁（星号），从而保护 咽旁颈内动脉。

鼻窦癌皮瓣或移植物重建手术的跨学科挑战和目标

对先前受过辐射的患者的嗅神经母细胞瘤进行内窥镜经鼻去骨瓣切除术后，用颅骨膜瓣 (PF) 覆盖前颅底。 (A) 以左侧眶上和滑车上为蒂的骨膜瓣内层（红线）。 (B) 皮瓣通过额窦前壁上部的开口抵靠整个前颅底。 (C) 最终内窥镜视图，皮瓣覆盖整个前颅底，从右侧到左侧眼眶（分别为 RO 和 LO）横向，从额窦（白色箭头）到后方的鞍区。

鼻窦癌皮瓣或移植物重建手术的跨学科挑战和目标

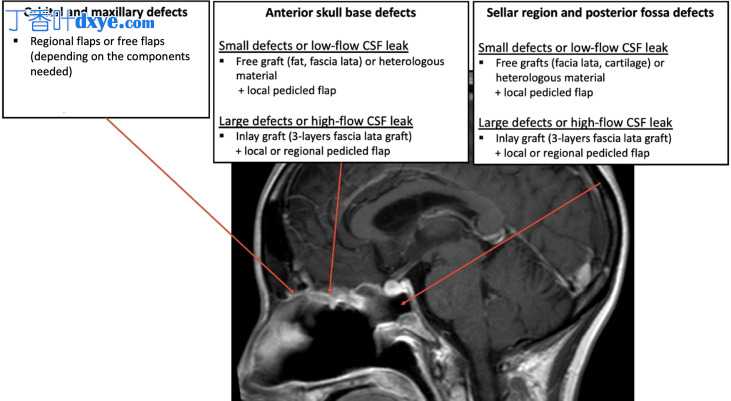

根据手术切除肿瘤后缺损的位置和大小提出重建策略。

鼻窦癌皮瓣或移植物重建手术的跨学科挑战和目标

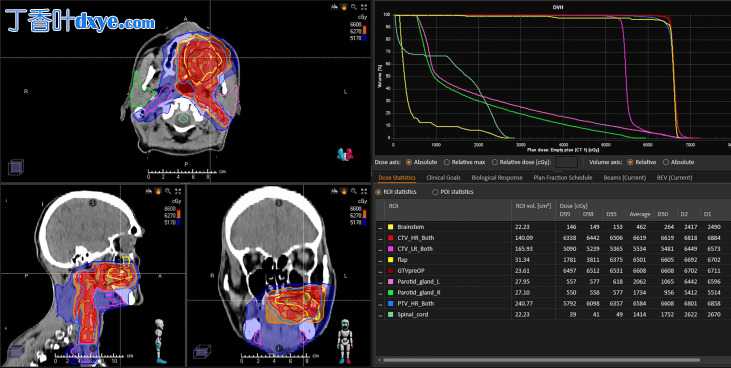

前臂软组织皮瓣重建手术后左腭鳞状细胞癌的术后放疗计划。 皮瓣（黄线）未被划定用于 RT 计划，并且已独立于转诊的放射肿瘤学家进行后验划定，并且对 CTV 划定视而不见。 辐射剂量分布分析表明，皮瓣被视为目标体积并接受了最高剂量处方水平（66 Gy，在红色 62.7Gy 等剂量范围内）。

1. Dutta R, Dubal PM, Svider PF, Liu JK, Baredes S, Eloy JA. Sinonasal malignancies: A population-based analysis of site-specific incidence and survival: Sinonasal malignancies. Laryngoscope (2015) 125:2491–7. doi:  10.1002/lary.25465
2. Eggesbø HB. Imaging of sinonasal tumours. Cancer Imaging (2012) 12:136–52. doi:  10.1102/1470-7330.2012.0015
3. Turner JH, Reh DD. Incidence and survival in patients with sinonasal cancer: A historical analysis of population-based data. Head Neck (2012) 34:877–85. doi:  10.1002/hed.21830
4. Stelow EB, Bishop JA. Update from the 4th edition of the world health organization classification of head and neck tumours: Tumors of the nasal cavity, paranasal sinuses and skull base. Head Neck Pathol (2017) 11:3–15. doi:  10.1007/s12105-017-0791-4
5. Ferrari M, Orlandi E, Bossi P. Sinonasal cancers treatments: State of the art. Curr Opin Oncol (2021) 33:196–205. doi:  10.1097/CCO.0000000000000726
6. Beddok A, Guzene L, Coutte A, Thomson D, Yom S, Calugaru V, et al.. International assessment of interobserver reproducibility of flap delineation in head and neck carcinoma. Acta Oncol (2022) 61(6):672–9. doi:  10.1080/0284186X.2022.2036367
7. Carsuzaa F, Lapeyre M, Gregoire V, Maingon P, Beddok A, Marcy P-Y, et al.. Recommendations for postoperative radiotherapy in head & neck squamous cell carcinoma in the presence of flaps: A GORTEC internationally-reviewed HNCIG-endorsed consensus. Radiother Oncol (2021) 160:140–7. doi:  10.1016/j.radonc.2021.04.026
8. Hagemann J, Roesner J, Helling S, Jacobi C, Doescher J, Engelbarts M, et al.. Long-term outcome for open and endoscopically resected sinonasal tumors. Otolaryngol Head Neck Surg (2019) 160:862–9. doi:  10.1177/0194599818815881
9. Awad AJ, Mohyeldin A, El-Sayed IH, Aghi MK. Sinonasal morbidity following endoscopic endonasal skull base surgery. Clin Neurol Neurosurg (2015) 130:162–7. doi:  10.1016/j.clineuro.2015.01.004
10. Hartl DM, Brasnu DF, Shah JP, Hinni ML, Takes RP, Olsen KD, et al.. Is open surgery for head and neck cancers truly declining? Eur Arch Otorhinolaryngol (2013) 270:2793–802. doi:  10.1007/s00405-012-2322-y
11. Villaret AB, Yakirevitch A, Bizzoni A, Bosio R, Bignami M, Pistochini A, et al.. Endoscopic transnasal craniectomy in the management of selected sinonasal malignancies. Am J Rhinol�Allergy (2010) 24:60–5. doi:  10.2500/ajra.2010.24.3397
12. Nicolai P, Battaglia P, Bignami M, Villaret AB, Delù G, Khrais T, et al.. Endoscopic surgery for malignant tumors of the sinonasal tract and adjacent skull base: A 10-year experience. Am J Rhinol (2008) 22:308–16. doi:  10.2500/ajr.2008.22.3170
13. Castelnuovo P, Battaglia P, Locatelli D, Delù G, Sberze F, Bignami M. Endonasal micro-endoscopic treatment of malignant tumors of the paranasal sinuses and anterior skull base. Operative Techniques Otolaryngol-Head Neck Surg (2006) 17:152–67. doi:  10.1016/j.otot.2006.06.002
14. Volpi L, Bignami M, Lepera D, Karligkiotis A, Pistochini A, Ottini G, et al.. Endoscopic endonasal resection of adenoid cystic carcinoma of the sinonasal tract and skull base. Laryngoscope (2019) 129:1071–7. doi:  10.1002/lary.27485
15. Lundberg M, Haapaniemi A, Hagstrom J, Juteau S, Hernberg M, Makitie AA, et al.. Similar survival outcome after endoscopic and open approaches for sinonasal mucosal melanoma. Rhin (2019) 0:0–0. doi:  10.4193/Rhin18.123
16. Moya-Plana A, Bresson D, Temam S, Kolb F, Janot F, Herman P. Development of minimally invasive surgery for sinonasal malignancy. Eur Ann Otorhinolaryngo Head Neck Dis (2016) 133:405–11. doi:  10.1016/j.anorl.2016.06.001
17. Abdelmeguid AS, Raza SM, Su SY, Kupferman M, Roberts D, DeMonte F, et al.. Endoscopic resection of sinonasal malignancies. Head Neck (2020) 42:645–52. doi:  10.1002/hed.26047
18. Consortium CRANIAL. CSF rhinorrhoea after endonasal intervention to the skull base (CRANIAL) - part 1: Multicenter pilot study. World Neurosurg (2021) 149:e1077–89. doi:  10.1016/j.wneu.2020.12.171
19. Bernal-Sprekelsen M, Rioja E, Enseñat J, Enriquez K, Viscovich L, Agredo-Lemos FE, et al.. Management of anterior skull base defect depending on its size and location. BioMed Res Int (2014) 2014:346873. doi:  10.1155/2014/346873
20. Soni AJ, Modi G. Outcome of uncorrected CSF leak and consequent recurrent meningitis in a patient: A case presentation and literature review. Br J Neurosurg (2020) 34:492–4. doi:  10.1080/02688697.2018.1478063
21. Bubshait RF, Almomen AA. The endonasal endoscopic management of cerebrospinal fluid rhinorrhea. Cureus (2021) 13:e13457. doi:  10.7759/cureus.13457
22. Ivan ME, Iorgulescu JB, El-Sayed I, McDermott MW, Parsa AT, Pletcher SD, et al.. Risk factors for postoperative cerebrospinal fluid leak and meningitis after expanded endoscopic endonasal surgery. J Clin Neurosci (2015) 22:48–54. doi:  10.1016/j.jocn.2014.08.009
23. Moore AG, Srinivasan A. Postoperative and postradiation head and neck: Role of magnetic resonance imaging. Top Magn Reson Imaging (2015) 24:3–13. doi:  10.1097/RMR.0000000000000042
24. Moya-Plana A, Veyrat M, Honart JF, de Fremicourt K, Alkhashnam H, Sarfati B, et al.. Reconstruction of maxillectomy and midfacial defects using latissimus dorsi-scapular free flaps in a comprehensive cancer center. Oral Oncol (2019) 99:104468. doi:  10.1016/j.oraloncology.2019.104468
25. Vass G, Bella Z, Tóbiás Z, Nagy A, Iván L, Rovó L. Esthetically favorable surgical alternative for the removal of sinonasal malignant tumors–the modified facial degloving technique. J Oral Maxillofac Surg (2017) 75:2272. doi:  10.1016/j.joms.2017.06.036
26. Jang JW, Chan AW. Prevention and management of complications after radiotherapy for skull base tumors: A multidisciplinary approach. Adv Otorhinolaryngol (2013) 74:163–73. doi:  10.1159/000342293
27. Sharma MB, Jensen K, Urbak SF, Funding M, Johansen J, Bechtold D, et al.. A multidimensional cohort study of late toxicity after intensity modulated radiotherapy for sinonasal cancer. Radiother Oncol (2020) 151:58–65. doi:  10.1016/j.radonc.2020.07.029
28. Mohamed Ali A, Mathis T, Bensadoun R-J, Thariat J. Radiation induced optic neuropathy: Does treatment modality influence the risk? Bull Cancer (2019) 106:1160–76. doi:  10.1016/j.bulcan.2019.09.008
29. Leng LZ, Brown S, Anand VK, Schwartz TH. “Gasket-seal” watertight closure in minimal-access endoscopic cranial base surgery. Neurosurgery (2008) 62:ONSE342-343. doi:  10.1227/01.neu.0000326017.84315.1f
30. Mattavelli D, Schreiber A, Ferrari M, Accorona R, Bolzoni Villaret A, Battaglia P, et al.. Three-layer reconstruction with iliotibial tract after endoscopic resection of sinonasal tumors. World Neurosurg (2017) 101:486–92. doi:  10.1016/j.wneu.2017.02.066
31. Mattavelli D, Schreiber A, Villaret AB, Accorona R, Turri-Zanoni M, Lambertoni A, et al.. Complications and donor site morbidity of 3-layer reconstruction with iliotibial tract of the anterior skull base: Retrospective analysis of 186 patients. Head Neck (2018) 40:63–9. doi:  10.1002/hed.24931
32. Fonmarty D, Bastier P-L, Lechot A, Gimbert E, de Gabory L. Assessment of abdominal fat graft to repair anterior skull base after malignant sinonasal tumor extirpation. Otolaryngol Head Neck Surg (2016) 154:540–6. doi:  10.1177/0194599815620781
33. Suh JD, Ramakrishnan VR, DeConde AS. Nasal floor free mucosal graft for skull base reconstruction and cerebrospinal fluid leak repair. Ann Otol Rhinol Laryngol (2012) 121:91–5. doi:  10.1177/000348941212100203
34. Chavan SS, Potdukhe KV, Kale V, Naik H, Thomas I. A comparitive study of endoscopic skull base reconstruction in CSF rhinorrea using nasoseptal flap with septal cartilage v/s fascia lata with fat. Indian J Otolaryngol Head Neck Surg (2021) 73:233–9. doi:  10.1007/s12070-021-02379-1
35. Hadad G, Bassagasteguy L, Carrau RL, Mataza JC, Kassam A, Snyderman CH, et al.. A novel reconstructive technique after endoscopic expanded endonasal approaches: Vascular pedicle nasoseptal flap. The laryngoscope (2006) 116:1882–6. doi:  10.1097/01.mlg.0000234933.37779.e4
36. Zanation AM, Carrau RL, Snyderman CH, Germanwala AV, Gardner PA, Prevedello DM, et al.. Nasoseptal flap reconstruction of high flow intraoperative cerebral spinal fluid leaks during endoscopic skull base surgery. Am J Rhinol�Allergy (2009) 23:518–21. doi:  10.2500/ajra.2009.23.3378
37. Zanation AM, Thorp BD, Parmar P, Harvey RJ. Reconstructive options for endoscopic skull base surgery. Otolaryngol Clinics North America (2011) 44:1201–22. doi:  10.1016/j.otc.2011.06.016
38. Schreiber A, Mattavelli D, Ferrari M, Rampinelli V, Lancini D, Belotti F, et al.. The turbinal flap: An additional option for anterior skull base reconstruction. cadaveric feasibility study and case report: The turbinal flap. Int Forum Allergy Rhinol (2017) 7:199–204. doi:  10.1002/alr.21857
39. Battaglia P, Turri-Zanoni M, De Bernardi F, Dehgani Mobaraki P, Karligkiotis A, Leone F, et al.. Septal flip flap for anterior skull base reconstruction after endoscopic resection of sinonasal cancers: Preliminary outcomes. Acta Otorhinolaryngol Ital (2016) 36:194–8. doi:  10.14639/0392-100X-748
40. Bozkurt G, Leone F, Arosio AD, Dehgani Mobaraki P, Elhassan HA, Seyhun N, et al.. Septal flip flap for anterior skull base reconstruction after endoscopic transnasal craniectomy: Long-term outcomes. World Neurosurg (2019) 128:e409–16. doi:  10.1016/j.wneu.2019.04.166
41. Hadad G, Rivera-Serrano CM, Bassagaisteguy LH, Carrau RL, Fernandez-Miranda J, Prevedello DM, et al.. Anterior pedicle lateral nasal wall flap: A novel technique for the reconstruction of anterior skull base defects. Laryngoscope (2011) 121:1606–10. doi:  10.1002/lary.21889
42. Fortes FSG, Carrau RL, Snyderman CH, Kassam A, Prevedello D, Vescan A, et al.. Transpterygoid transposition of a temporoparietal fascia flap: A new method for skull base reconstruction after endoscopic expanded endonasal approaches. Laryngoscope (2007) 117:970–6. doi:  10.1097/MLG.0b013e3180471482
43. Arosio AD, Coden E, Karligkiotis A, Volpi L, Petruzzi G, Pellini R, et al.. Temporoparietal fascia flap endonasal transposition in skull base reconstruction: Surgical technique. World Neurosurg (2021) 146:118. doi:  10.1016/j.wneu.2020.10.169
44. Reyes C, Mason E, Solares CA. Panorama of reconstruction of skull base defects: from traditional open to endonasal endoscopic approaches, from free grafts to microvascular flaps. Int Arch Otorhinolaryngol (2014) 18:S179–186. doi:  10.1055/s-0034-1395268
45. Gutierrez WR, Bennion DM, Walsh JE, Owen SR. Vascular pedicled flaps for skull base defect reconstruction. Laryngoscope Investig Otolaryngol (2020) 5:1029–38. doi:  10.1002/lio2.471
46. Ferrari M, Vural A, Schreiber A, Mattavelli D, Gualtieri T, Taboni S, et al.. Side-door temporoparietal fascia flap: A novel strategy for anterior skull base reconstruction. World Neurosurg (2019) 126:e360–70. doi:  10.1016/j.wneu.2019.02.056
47. Patel MR, Shah RN, Snyderman CH, Carrau RL, Germanwala AV, Kassam AB, et al.. Pericranial flap for endoscopic anterior skull-base reconstruction. Neurosurgery (2010) 66:506–12. doi:  10.1227/01.NEU.0000365620.59677.FF
48. Majer J, Herman P, Verillaud B. “Mailbox slot” pericranial flap for endoscopic skull base reconstruction. Laryngoscope (2016) 126:1736–8. doi:  10.1002/lary.25686
49. Santamaría A, Langdon C, López-Chacon M, Cordero A, Enseñat J, Carrau R, et al.. Radio-anatomical analysis of the pericranial flap “money box approach” for ventral skull base reconstruction. Laryngoscope (2017) 127:2482–9. doi:  10.1002/lary.26574
50. Xu X, Lwin S, Ting E, Ong YK. Magnetic resonance imaging study of the pericranial flap and its local effects following endoscopic craniofacial resection. Laryngoscope (2021) 131(1):E90–7. doi:  10.1002/lary.28735
51. Yano T, Tanaka K, Kishimoto S, Iida H, Okazaki M. Reliability of and indications for pericranial flaps in anterior skull base reconstruction. J Craniofacial Surg (2011) 22:482–5. doi:  10.1097/SCS.0b013e318207b714
52. Zanation AM, Snyderman CH, Carrau RL, Kassam AB, Gardner PA, Prevedello DM. Minimally invasive endoscopic pericranial flap: A new method for endonasal skull base reconstruction. Laryngoscope (2009) 119:13–8. doi:  10.1002/lary.20022
53. Rodriguez-Lorenzo A, Driessen C, Mani M, Lidian A, Gudjonsson O, Stigare E. Endoscopic assisted insetting of free flaps in anterior skull base reconstruction: A preliminary report of five cases. Microsurgery (2020) 40:460–7. doi:  10.1002/micr.30542
54. Soutar DS, Scheker LR, Tanner NS, McGregor IA. The radial forearm flap: A versatile method for intra-oral reconstruction. Br J Plast Surg (1983) 36:1–8. doi:  10.1016/0007-1226(83)90002-4
55. Lin AC, Lin DT. Reconstruction of lateral skull base defects with radial forearm free flaps: The double-layer technique. J Neurol Surg B Skull Base (2015) 76:257–61. doi:  10.1055/s-0035-1548551
56. Wang W, Vincent A, Sokoya M, Kohlert S, Kadakia S, Ducic Y. Free-flap reconstruction of skull base and orbital defects. Semin Plast Surg (2019) 33:72–7. doi:  10.1055/s-0039-1677881
57. Bell EB, Cohen ER, Sargi Z, Leibowitz J. Free tissue reconstruction of the anterior skull base: A review. World J Otorhinolaryngol Head Neck Surg (2020) 6:132–6. doi:  10.1016/j.wjorl.2020.01.004
58. Kwon D, Iloreta A, Miles B, Inman J. Open anterior skull base reconstruction: A contemporary review. Semin Plast Surg (2017) 31:189–96. doi:  10.1055/s-0037-1607273
59. Ali RS, Bluebond-Langner R, Rodriguez ED, Cheng M-H. The versatility of the anterolateral thigh flap. Plast Reconstr Surg (2009) 124:e395–407. doi:  10.1097/PRS.0b013e3181bcf05c
60. Strohl MP, Junn JC, House AE, Heaton CM, Seth R, Park AM, et al.. Long-term stability of vascularized adipofascial flaps in facial reconstruction. Facial Plast Surg Aesthet Med (2020) 22:262–7. doi:  10.1089/fpsam.2019.0015
61. Livaoğlu M, Karacal N, Bektaş D, Bahadir O. Reconstruction of full-thickness nasal defect by free anterolateral thigh flap. Acta Otolaryngol (2009) 129:541–4. doi:  10.1080/00016480802258810
62. Lin X, uan SY, Liu C. The anterolateral thigh flap for reconstruction of the defect after maxillectomy. J Craniofac Surg (2020) 31:e89–92. doi:  10.1097/SCS.0000000000005975
63. Urken M, Turk J, Weinberg H, Vickery C, Biller H. The rectus abdominis free flap in head and neck reconstruction. Arch Otolaryngol Head Neck Surg (1991) 117(8):857–66. doi:  10.1001/archotol.1991.01870210103021
64. Aviv J, Urken M, Vickery C, Weinberg H, Buchbinder D, Biller H. The combined latissimus dorsi-scapular free flap in head and neck reconstruction. Arch Otolaryngol Head Neck Surg (1991) 117(11):1242–50. doi:  10.1001/archotol.1991.01870230058008
65. Bluebond-Langner R, Rodriguez ED. Application of skeletal buttress analogy in composite facial reconstruction. Craniomaxillofac Trauma Reconstr (2009) 2:19–25. doi:  10.1055/s-0028-1098966
66. Heredero S, Solivera J, García B, Dean A. Osteomyocutaneous peroneal artery perforator flap for reconstruction of the skull base. Br J Oral Maxillofac Surg (2016) 54:99–101. doi:  10.1016/j.bjoms.2015.10.016
67. Bartholomew R, Zenga J, Lin D, Deschler D, Richmon J. Tip-on-Tip scapular (TOTS) flap for reconstruction of combined palatectomy and rhinectomy defects. Facial Plast Surg (2018) 34:389–93. doi:  10.1055/s-0038-1666784
68. Brown J, Bekiroglu F, Shaw R. Indications for the scapular flap in reconstructions of the head and neck. Br J Oral Maxillofac Surg (2010) 48:331–7. doi:  10.1016/j.bjoms.2009.09.013
69. Bianchi B, Ferri A, Ferrari S, Copelli C, Boni P, Sesenna E. Iliac crest free flap for maxillary reconstruction. J Oral Maxillofac Surg (2010) 68(11):2706–13. doi:  10.1016/j.joms.2010.01.008
70. Jang W-H, Lee JM, Jang S, Kim H-D, Ahn K-M, Lee J-H. Mirror image based three-dimensional virtual surgical planning and three-dimensional printing guide system for the reconstruction of wide maxilla defect using the deep circumflex iliac artery free flap. J Craniofac Surg (2019) 30:1829–32. doi:  10.1097/SCS.0000000000005577
71. Stranix JT, Stern CS, Rensberger M, Ganly I, Boyle JO, Allen RJ, et al.. A virtual surgical planning algorithm for delayed maxillomandibular reconstruction. Plastic and Reconstructive Surgery (2019) 143:1197–206. doi:  10.1097/PRS.0000000000005452
72. Swendseid B, Kumar A, Sweeny L, Wax MK, Zhan T, Goldman RA, et al.. Long-term complications of osteocutaneous free flaps in head and neck reconstruction. Otolaryngol Head Neck Surg (2020) 162:641–8. doi:  10.1177/0194599820912727
73. Snyderman CH, Wang EW, Zenonos GA, Gardner PA. Reconstruction after endoscopic surgery for skull base malignancies. J Neurooncol (2020) 150:463–8. doi:  10.1007/s11060-020-03465-0
74. Rotman LE, Kicielinski KP, Broadwater DR, Davis MC, Vaughan TB, Woodworth BA, et al.. Predictors of nasoseptal flap use after endoscopic transsphenoidal pituitary mass resection. World Neurosurg (2018) S1878-8750(18):32920–6. doi:  10.1016/j.wneu.2018.12.097
75. MacArthur FJD, McGarry GW. The radioanatomy of endonasal flap coverage of skull base defects: A tool for preoperative planning. Laryngoscope (2018) 128:1287–93. doi:  10.1002/lary.26925
76. Dang RP, Roland LT, Sharon JD, Doering M, Chicoine MR, Pipkorn P. Pedicle corridors and vessel options for free flap reconstruction following endoscopic endonasal skull base surgery: A systematic review. J Neurol Surg B Skull Base (2021) 82:196–201. doi:  10.1055/s-0039-1695001
77. Workman A, Palmer J, Adappa N. Posttreatment surveillance for sinonasal malignancy. Curr Opin Otolaryngol Head Neck Surg (2017) 25(1):86–92. doi:  10.1097/moo.0000000000000330
78. Kang MD, Escott E, Thomas AJ, Carrau RL, Snyderman CH, Kassam AB, et al.. The MR imaging appearance of the vascular pedicle nasoseptal flap. AJNR Am J Neuroradiol (2009) 30:781–6. doi:  10.3174/ajnr.A1453
79. Shokri T, Stahl LE, Kanekar SG, Goyal N. Osseous changes over time in free fibular flap reconstruction. Laryngoscope (2019) 129:1113–6. doi:  10.1002/lary.27337
80. Witjes MJH, Schepers RH, Kraeima J. Impact of 3D virtual planning on reconstruction of mandibular and maxillary surgical defects in head and neck oncology. Curr Opin Otolaryngol Head Neck Surg (2018) 26:108–14. doi:  10.1097/MOO.0000000000000437
81. Genden EM, Rinaldo A, Suárez C, Wei WI, Bradley PJ, Ferlito A. Complications of free flap transfers for head and neck reconstruction following cancer resection. Oral Oncol (2004) 40:979–84. doi:  10.1016/j.oraloncology.2004.01.012
82. Fujioka M. Factors predicting total free flap loss after microsurgical reconstruction following the radical ablation of head and neck cancers. ISRN Plast Surg (2013) 2013:1–5. doi:  10.5402/2013/952971
83. Diekhoff T, Scheel M, Kress W, Hamm B, Jahnke P. Dual-energy computed tomography of the neck–optimizing tube current settings and radiation dose using a 3D-printed patient phantom. Quant Imaging Med Surg (2021) 11:1144–55. doi:  10.21037/qims-20-854
84. Bittermann G, Voss P, Duttenhoefer F, Zimmerer R, Vach K, Metzger MC. The validity of surgical clips as radiographic markers for the tumour resection cavity in head and neck cancer treatment. J Craniomaxillofac Surg (2015) 43:758–62. doi:  10.1016/j.jcms.2015.04.005
85. Le Guevelou J, Bastit V, Marcy PY, Lasne-Cardon A, Guzene L, Gerard M, et al.. Flap delineation guidelines in postoperative head and neck radiation therapy for head and neck cancers. Radiother Oncol (2020) 151:256–65. doi:  10.1016/j.radonc.2020.08.025
86. Gérard M, Le Guevelou J, Jacksic N, Lequesne J, Bastit V, Géry B, et al.. Postoperative radiotherapy after flap reconstructive surgery in patients with head and neck cancer: A retrospective monocentric study with flap delineation to assess toxicity and relapse. Cancer Radiother (2020) 24:851–9. doi:  10.1016/j.canrad.2020.06.024
