Open versus laparoscopic adrenalectomy for Pheochromocytomas

Dr.Osama Saffarini
Surgeon specialist Jordanian Board
Surgeon specialist Arab Board
Diploma in Minimal Access surgery
Member of World Association of laparoscopic Surgeons

Project Submitted Towards Completion Of Diploma In Minimal Access Surgery, World Laparoscopy Hospital, Gurgaon, NCR Delhi, India. September 2007.

Abstract:
In this review article, seven articles were reviewed from1998-march 2007 and analyzed, each study had 100-150 patients, reviewing treatment and management of adrenal surgery especially pheochromacytoma. The studies were taken from  Journal of Clinical Endocrinology and Metabolism, Annals of Surgical Oncology, Google, Springerlink, to evaluate the safety of laparoscopic adrenalectomy in comparison open treatment. Conclusion:   Laparoscopic adrenalectomy should be the treatment of choice for all benign adrenal tumors. Laparoscopic resection of large adrenal tumors needs experienced surgeons in open and advanced laparoscopic surgery.

Key words:
Adrenalectomy, pheochromacytoma, open versus laparoscopic surgery

Introduction:


登录/注册后可看大图

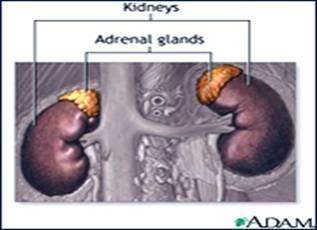

Pheochromocytomas are rare tumours of the adrenal gland that arise from chromaffin cells in the adrenal medulla. The most common symptoms of pheochromocytoma are headaches, palpitations, and sweating. It has been estimated that approximately 10%–15% of pheochromocytomas are due to hereditary causes. Heritable causes of pheochromocytoma include MEN2A, MEN2B, von Hippel Lindau disease (VHL), neurofibromatosis type 1, paraganglioma syndrome, and hereditary pheochromocytoma. Estimates of hereditary etiology among apparently sporadic cases of pheochromocytoma ranges from 10%-15%.

The diagnosis of pheochromocytoma is made upon biochemical and radiological studies. That is US MRI  CT-scan. norcholesterol (NP-59) or 131I- metaiodobenzylguanidine(MIBG), The first laparoscopic adrenalectomy was performed by Michel Gagner in 1992 [24].

Objective:
The aims of this study is evaluating the efficacy, safety and outcome  of laparoscopic   adrenalectomy for pheochromocytoma  in comparison with open surgery, and also determine  the risk factors which influence the outcome to identify those patients that are not good candidates for laparoscopic approach.

Materials and methods:
A literature search was performed using search engine Google, HighWire Press, SpringerLink and library facility available at laparoscopic hospital. Journal of Clinical Endocrinology and Metabolism.

Treatment:
Surgical treatment is the only option. Preoperatively in all patients with preoperative signs and symptoms of catecholamine excess, alpha-adrenergic blockade was started 10 days to 2 weeks  before surgery. For patients with  tachycardia, beta-blockade was added. Patients with alpha blockade-induced orthostatic hypotension were treated with oral and/or intravenous volume loading during the 24 to 48 hours prior to surgery. Patients were infused with 1 to 2 L of crystalloid solution for intravascular volume expansion in the preoperative holding area. It is wise to have all patients  an arterial line and 2 large-bore peripheral intravenous lines or a central venous line placed prior to the induction of general anesthesia.

Surgical Technique:


登录/注册后可看大图

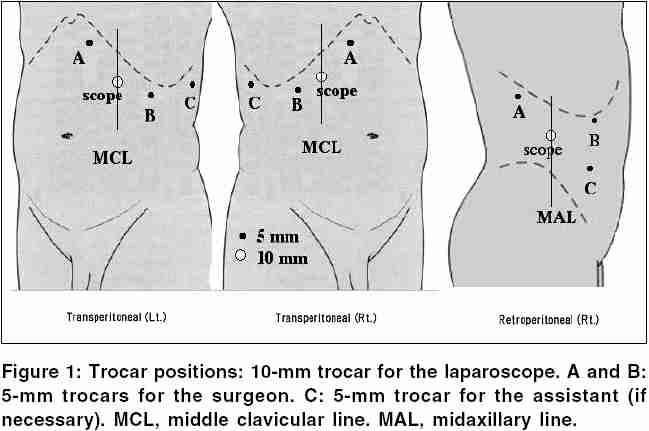

The adrenalectomies can be performed laparoscopically through a lateral decubitus or supine transperitoneal  approach, or lateral retroperitoneal approach [1-2] .Briefly, a diagnostic laparoscopy was performed at the beginning of each procedure to rule out local tumor invasion or diffuse metastatic spread.The lateral decubitus transperitoneal  approach; which is the most popular; starts with three subcostal ports (5–12 mm) allowed for the introduction of a 30°  laparoscope and 2 working instruments. During right adrenalectomies, a fourth 5-mm port was placed in a subxyphoid position for liver retraction. Occasionally during left adrenalectomies, a fourth port was added below the tip of the left twelfth rib to provide blunt retraction of the kidney and/or adrenal gland. This technique was particularly useful for larger tumors, which often encroached upon the vascular hilum of the kidney, making exposure of the adrenal vein difficult. Early ligation and division of the adrenal vein was carried out prior to gland manipulation and dissection when possible.

For right adrenalectomies, the right hepatic lobe was completely mobilized to provide adequate visualization and safe access to the vena cava and adrenal vein. The triangular ligament was incised to the level of the diaphragm. The retroperitoneum was then opened longitudinally along the medial aspect of the adrenal gland, and immediately adjacent to the lateral edge of the liver, until the vena cava was clearly identified.

Development of the plane between the inferior vena cava and the medial margin of the gland was performed to expose the right adrenal vein. Early dissection and mobilization of the inferior retroperitoneal attachments to the tumor increased gland mobility and made venous control considerably safer.


登录/注册后可看大图

On the left, the splenic flexure was mobilized to allow access to the splenorenal ligament. The retroperitoneal plane superficial to Gerota fascia was developed to the level of the diaphragm, allowing for medial rotation of the spleen and the pancreatic tail. A complete medial rotation of adjacent structures was critical to provide adequate exposure of the adrenal gland and vein. Gerota fascia was incised medial to the superior pole of the kidney to provide access to the left adrenal vein and the adrenal gland. The vein was then ligated and divided at its confluence with the left renal vein.

On either side, the borders of the adrenal gland were first identified and then dissected away from the retroperitoneum, using periadrenal fat as a “handle.” The larger glands, especially those greater than 5 cm, were most often resected with periadrenal fat, exposing the psoas muscle from the renal hilum cephalad to the diaphragm. The gland was never grasped to avoid hemodynamic liability, troublesome bleeding, or tumor disruption. Large adrenal veins, typically those greater than 7 mm in width, were divided with an endovascular stapler. Specimens were placed into an impervious extraction bag prior to morcellation (if necessary) and removal. The peritoneum and fascia at the trocar sites were closed endoscopically
Postoperative Care: Crystalloid fluid challenge to treat Postoperative hypotension. NG –tubes as indicated.  Clear liquids can be given on the same night after surgery.Patients were discharged 3-5 days. Follow-up in OPD at 7 to 10 days and another at 3 to 4 weeks postoperatively, and subsequently as needed. Long-term follow-up included frequent blood pressure monitoring for the first year, then yearly thereafter. Urinary metanephrine levels are followed annually for a period of 5 years.

Outcome and Analysis:
Compared with those who underwent a standard open approach, patients undergoing a laparoscopic adrenalectomy have demonstrated decreased perioperative morbidity, shorter hospitalization, and faster functional recovery [3-4].

Discussion:
Surgical treatment offers the only cure for pheochromocytomas. Despite the improvements in perioperative medical management, anesthesia, and surgical techniques, adrenalectomy for pheochromocytomas carries morbidity rates as high as 40% and perioperative mortality rates of 2% to 4% [5].  Fears of cardiovascular instability due of excessive catecholamine release caused by the pneumoperitoneum and/or laparoscopic dissection have urged concerns over the role of laparoscopy in adrenalectomy. Continuous invasive monitoring and pharmacologic intervention by an experienced anesthesia team are necessary to avoid substantial cardiovascular instability. The surgeon must avoid excessive tumor manipulation, which can result in catecholamine release. Tumor manipulation has been shown to be the most important intraoperative factor for catecholamine release during both open and laparoscopic adrenal resections [6-7-8] .Fernandez-Cruz et al [9] demonstrated that mean plasma norepinephrine and epinephrine increased 13.7- and 34.2-fold during open tumor manipulation.

Thompson andassociates [25]  performed a matched case-control study comparing50 patients having open adrenalectomy to 56 patients having adrenalectomy through a posterior approach. They found that LA, compared to OA, was significantly associated with shorter hospital stay, less postoperative narcotic use, more rapid return to normal activity, increased patient satisfaction, and less late morbidity. However, the laparoscopic procedure was associated, with longer operating room time and higher cost. Similar results have been reported by Prinz   [26] and by Brunt et al [27] , who found that LA had distinct advantages compared to OA.
.Laparoscopic tumor manipulation was associated with a significantly diminished increase in plasma catecholamine levels (norepinephrine, 8.6-fold; epinephrine, 17.4-fold). Rocha et al [6] also reported that such hormonal release occurs despite an early adrenal vein ligation, likely due to the extensive vascularity of pheochromocytomas. Careful adrenal dissection, using periadrenal fat as a handle, with minimization of direct manipulation or compression of the gland itself, is critical to avoid catecholamine release. ntra-abdominal insufflation during laparoscopic pheochromocytoma excision may alone cause an increase in serum catecholamines.[6-10]

This stimulus may be via either a direct  tumor compression or a change in tumor perfusion. The pneumoperitoneum with CO2 may lead to hypercapnia and acidosis, which, in turn, are known stimuli of catecholamine secretion and hypertension.[6-11] Rocha et al found a more than 10-fold elevation in catecholamines during abdominal insufflation to 12 mm Hg with CO2, with about 50% of patients experiencing hypertensive episodes.[6] As a result, helium has been suggested as an alternate insufflation agent to eliminate the deleterious effects of CO2 during laparoscopic adrenalectomies for pheochromocytoma. In a prospective evaluation of 11 patients undergoing helium insufflation during laparoscopic pheochromocytoma resection, the authors demonstrated that its use avoided significant intraoperative hypercarbia or acidosis and provided greater intraoperative hemodynamic stability [7]. Interestingly, though, there were no differences between the CO2 and the helium insufflation groups in either serum catecholamine surges or overall surgical outcomes. [7] When compared with other indications for adrenalectomy, laparoscopic resection of pheochromocytomas results in longer operative times, higher complication rates, and longer hospitalization. With growing experience using advanced laparoscopic techniques, conversion rates have decreased from 22% to 0%–4%.[12-13-14] The “learning curve” may play a significant role in improving the efficiency and safety of advanced laparoscopic procedures. Pheochromocytomas have a malignant potential and are frequently larger in size than other functional adrenal tumors. Extreme care must be exercised to avoid intraoperative capsular disruptions and possible iatrogenic pheochromocytomatosis. Li et al[15] reported 3 cases of pheochromocytoma recurrence 3 to 4 years after initial laparoscopic resection and possible tumor spillage. As a result, many investigators have suggested that laparoscopy be avoided for pheochromocytomas larger that 7 to 8 cm.[12-16-17] Conversion to an open procedure is warranted, however, when laparoscopic dissection cannot be performed safely or a complete resection cannot be performed without undue trauma to the gland.

It has been agreed by several authors that a posterior retroperitoneal LA is preferable to an anterior LA, especially inpatients who have either bilateral adrenal tumors, prior to
extensive abdominal procedures with resultant adhesions and scar tissue formation, or pre-existing cardiopulmonary disease [18-19] Posterior LA is not indicated in patients with large adrenal tumors.
The absolute contraindications for laparoscopic adrenalectomy include primary or metastatic invasive adrenal malignancies because extensive en blocsurgery and node dissection will be necessary. As well as coagulopathy, which can’t be controlled preoperatively.
Size of the tumor correlates with malignant potential. Weight greater than 100 g or size equal to 6 cm is highly suggestive of malignancy [20-21] Laparoscopy is a limited approach to the adrenal, requiring manipulationof the gland to remove it. In patients with cancer,wide resection of the gland with contiguous structures provides the best chance for cure[22].
The lateral transperitoneal approach is preferred over the retroperitoneal approach because of improved working space and gland visualization [23].
The resected gland is removed from the port site in an occlusive bag to decrease peritoneal implantation and port site recurrence.

The question is not weather laparoscopic adrenalectomy for pheochromocytoma should be done or not, but by whom should it be performed. A surgeon who is very proficient laparoscopically and significantly knowledgeable about adrenal anatomy may be able to perform this operation in a hospital that offers an appropriate level of anesthesia and ICU care.

Conclusion:
laparoscopic resection of pheochromocytomas can be performed safely with a short hospital stay and few complications, minimally invasive adrenalectomy for large pheochromocytoma has historically been controversial. Lesions larger than 6 cm are associated with longer operative times than smaller lesions, but they are not associated with greater blood loss, higher rates of intraoperative hemodynamic instability, or longer hospital stay.

Reference:

[1].Heniford BT, Arca MJ, Walsh RM, Gill IS. Laparoscopic adrenalectomy for cancer. Semin Surg Oncol. 1999;16:293–306.

[2].Gagner M, Pomp A, Heniford BT, et al. Laparoscopic adrenalectomy: lessons learned from 100 consecutive procedures. Ann Surg. 1997;226:238–246; discussion 246–247.

[3].Brunt LM. The positive impact of laparoscopic adrenalectomy on complications of adrenal surgery. Surg Endosc. 2002;16:252–257.

[4].Jacobs JK, Goldstein RE, Geer RJ. Laparoscopic adrenalectomy: a new standard of care. Ann Surg. 1997;225:495–501; discussion 501–502.

[5]Werbel SS, Ober KP. Pheochromocytoma: update on diagnosis, localization, and management. Med Clin North Am. 1995;79:131–153.

[6].Flavio Rocha M, Faramarzi-Roques R, Tauzin-Fin P, et al. Laparoscopic surgery for pheochromocytoma. Eur Urol. 2004;45:226–232.

[7].Fernandez-Cruz L, Saenz A, Taura P, et al. Helium and carbon dioxide pneumoperitoneum in patients with pheochromocytoma undergoing laparoscopic adrenalectomy. World J Surg. 1998;22:1250–1255.

[8]. Marty J, Desmonts JM, Chalaux G, et al. Hypertensive responses during operation for phaeochromocytoma: a study of plasma catecholamine and haemodynamic changes. Eur J Anaesthesiol. 1985;2:257–264.

[9].Fernandez-Cruz L, Taura P, Saenz A, et al. Laparoscopic approach to pheochromocytoma: hemodynamic changes and catecholamine secretion. World J Surg. 1996;20:762–768; discussion 768.

[10].de La Chapelle A, Deghmani M, Dureuil B. Peritoneal insufflation can be a critical moment in the laparoscopic surgery of pheochromocytoma. Ann Fr Anesth Reanim. 1998;17:1184–1185.

[11].Rose CE Jr, Althaus JA, Kaiser DL, et al. Acute hypoxemia and hypercapnia: increase in plasma catecholamines in conscious dogs. Am J Physiol. 1983;245:H924–H929.

[12].Cheah WK, Clark OH, Horn JK, et al. Laparoscopic adrenalectomy for pheochromocytoma. World J Surg. 2002;26:1048–1051.

[13].Kercher KW, Park A, Matthews BD, et al. Laparoscopic adrenalectomy for pheochromocytoma. Surg Endosc. 2002;16:100–102.

[14]. Kim AW, Quiros RM, Maxhimer JB, et al. Outcome of laparoscopic adrenalectomy for pheochromocytomas vs aldosteronomas. Arch Surg. 2004;139:526–529; discussion 529–531.

[15].Li ML, Fitzgerald PA, Price DC, et al. Iatrogenic pheochromocytomatosis: a previously unreported result of laparoscopic adrenalectomy. Surgery. 2001;130:1072–1077.

[16].Inabnet WB, Pitre J, Bernard D, et al. Comparison of the hemodynamic parameters of open and laparoscopic adrenalectomy for pheochromocytoma.World J Surg. 2000;24:574–578.

[17]. Staren ED, Prinz RA. Adrenalectomy in the era of laparoscopy. Surgery. 1996;120:706–709; discussion 710–711.

[18].Walz MK, Peitgen K, Hoermann R, Giebler RM, Mann K, Eigler FW. 1996
Posterior regroperitoneoscopy as a new minimally invasive approach for adrenalectomy:
results of 30 adrenalectomies in 27 patients. Word J Surg.
20:769 –774.

[19]. Bonjer HJ, Lange JF, Kazemier G, deHerder WW, Steyerberg EW, Bruining
HA. 1997 Comparison of three techniques for adrenalectomy. Br J Surg.
84:679–683.

[20]. Ross NS, Aron DC. 1990 Hormonal evaluation of a patient with an incidentally
discovered adrenal mass. N Engl J Med. 323:1401–1407.

[21]. Page DL, DeLellis RA, Hough AJ. 1986 Tumors of the adrenal. In: Hartmann
WH, Cowan WR, eds. Atlas of Tumor Pathology. Washington Armed Forces
Institute of Pathology; pp 1–106.:

[22].Soper NJ, Brunt LM, Kerbl K. 1994 Laparoscopic general surgery.

[23]. Duh QY, Siperstein AE, Clark OH, et al. 1996 Laparoscopic adrenalectomy:
comparison of the lateral and posterior approaches. Arch Surg. 131:870–876.

[24]. Gagner M, Lacroix A, Bolte E, 1992 Laparoscopic adrenalectomy in Cushing’s syndrome and pheochromocytoma. N Engl J Med 327: 1033.

[25]. Thompson GB, Grant CS, van Heerden J, et al. 1997 Laparoscopic versus open
posterior adrenalectomy: a case-control study of 100 patients. Surg. 6:132–136.

[26]. Prinz RA. 1995 A comparison of laparoscopic and open adrenalectomies. Arch
Surg. 130:489–494.

[27]. Brunt LM, Doherty GM, Norton JA, Soper NJ, Quasebarth MA, Moley JF.
1996 Laparoscopic adrenalectomy compared to open adrenalectomy for benign
adrenal neoplasms. J Am Coll Surg. 183:1–10.
